24 GHz Low Noise Amplifier LNA_024_005

RF Low Noise Amplifier LNA_024_005

LNA_024_005 is a particularly low-noise amplifier IC developed for high-frequency applications in the K-band. It is an improved version of our LNA_024_004 in terms of functional reliability. Design specifications and footprint of the two ICs are identical.

The low noise figure of down to 3.2 dB of the LNA_024_005 can be achieved by an optimized circuit design in combination with SiGe technology. Its high bandwidth of nearly 7.2 GHz makes it particularly suitable for use in wideband radar applications as well as for signal amplification in k-band wireless RF communication systems.

The low-noise amplifier chip features a gain control function that allows selection between low- and high-gain modes, both of which provide linear amplification. The ability to quickly switch between on and off states also allows for a pulsed mode of operation, e.g., to save power through low duty cycles. A power enable pin allows switching between operating and power-down modes to minimize noise exposure if no signal is present.

24 GHz Low Noise Amplifier Datasheet

Features  of RF Low Noise Amplifier LNA_024_005

• Low-noise amplifier (LNA) for 24-GHz ISM band an beyond
• Single supply voltage of 3.3V
• Low power consumption of 18mW
• Fully ESD protected device
• Gain control input
• Power-down mode
• Fast on/ off switching for pulsed operation
• QFN16 leadless plastic package 3mm × 3mm
• Pb-free, RoHS compliant package
• IC is available as bare die as well

Part Descriptions

Applications of RF Low Noise Amplifier LNA_024_005

• The main use of the LNA is in wireless communication systems and in radar systems for the ISM band at 24 GHz and for ultra-wide band systems up to 29GHz.

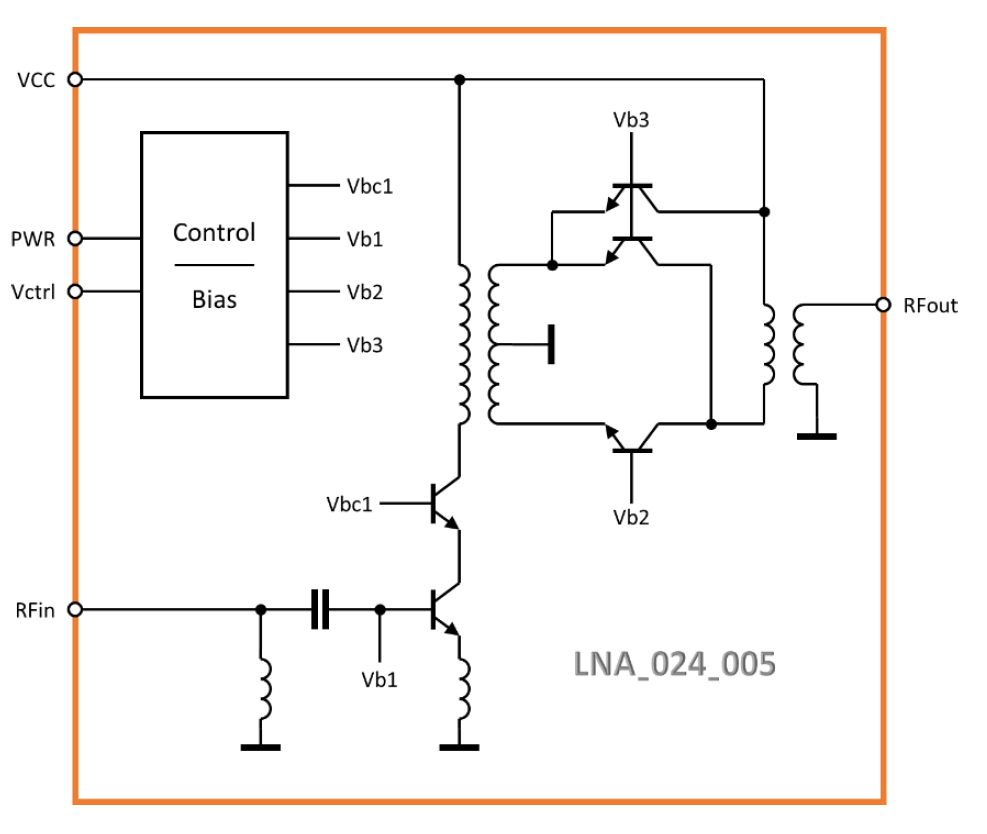

24 GHz Low Noise Amplifier Block Diagram

• ARTICLE NUMBER: LNA_024_005
• FREQUENCY: 24 GHz; K-Band
• FREQUENCY RANGE MIN / MAX: 21.5 GHz / 28.7 GHz
• NOISE: 3.2 dB
• GAIN: 8 dB / 15 dB
• SINGLE SUPPLY VOLTAGE: 3.3 V
• CURRENT CONSUMPTION: 5.6 mA
• PACKAGE QFN16: 3 x 3 mm²
• EVALUATION BOARDS / KITS: EvalKit Basic, on request
