Product Features

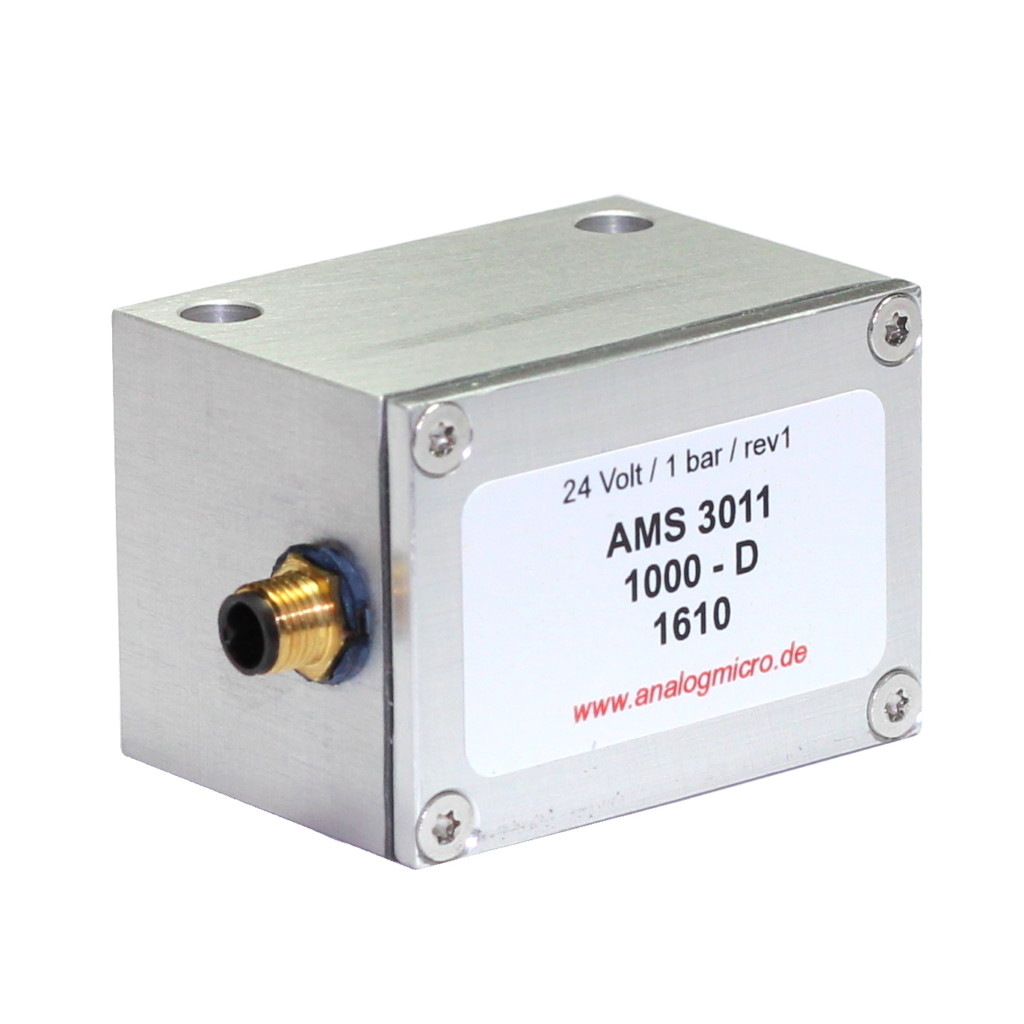

AMS 3011 is a series of robust pressure transmitters in a matchbox-sized IP67 metal package. This series is suitable for high precision measurements in industrial indoor and outdoor applications as well as in medical instrumentation.

All sensors in this series provide an analog output signal of 0 .. 5 V and can be powered within a wide supply voltage range of VS = 8 .. 36 V. They are calibrated and temperature compensated in a wide temperature range of -25 .. +85°C.

AMS 3011 comes in a rugged metal package with M5 female threads for pressure connection. Using standard M5 pressure fittings like barbed ports, hose or push-in fittings a wide variety of pressure connections can be established. The sensor’s electrical connection is realized with an M5 circular sensor connector. AMS 3011’s package is dustand water-tight conforming to IP67.

The pressure transmitters in the AMS 3011 series are available for various pressure types and ranges: differential (relative) devices in pressure ranges from 0 .. 50 mbar up to 0 .. 10 bar, absolute pressure variants for 0 .. 1 bar and 0 .. 2 bar as well as a barometric type for 0.7 .. 1.2 bar. Bidirectional-differential devices for measurement of positive and negative differential pressure are available from -25 .. +25 mbar up to -1 ..+1 bar.

Customized pressure ranges and output voltage ranges are available on request.

Features of AMS 3011 Industrial Pressure Transmitter

• Amplified pressure sensor with standardized 0 .. 5 V output
• Calibrated and temperature compensated
• Wide variety of pressure ranges: 25 mbar up to 10 bar
• Differential / gage, bidirectional differential, absolute and barometric versions
• Piezoresistive sensing element
• High precision digital signal conditioning
• High accuracy at room temperature
• Low overall error within a temperature range of -25 .. +85 °C
• Supply voltage range: 8 .. 36 V
• Robust and miniaturized metal package
• Pressure connection: M5 female thread
• Electrical connection: M5 sensor connector
• Simple and quick installation
• Dust- and water-tight (IP67)
• RoHS and REACH compliant

Applications of AMS 3011 Industrial Pressure Transmitter

• Static and dynamic pressure sensing
• Barometric pressure sensing
• Vacuum measurement
• Level measurement
• Medical instrumentation
• Indoor and outdoor measurement
• Pneumatic system monitoring
• Test benches

Part Descriptions

Pressure types and ranges for the AMS 3011

• AMS 3011 (low pressure) pressure ranges: gage/differential or bidirectional differential: 0-50; 0-100 mbar or ±25; ±50 and ±100 mbar
• AMS 3011 pressure ranges: gage/differential or bidirectional differential: 0-200; 0-350; 0-500 mbar; 0-1,0; 0-2,0, 0-4,0; 0-7,0; 0-10,0 bar; ±200; ±350 und ±1000 mbar
• AMS 3011 pressure ranges: absolute 0-1000 and 0-2000 mbar
• AMS 3011 pressure ranges: barometric 700- 1200 mbar
