Product Features

Bidirectional Remote Control

4/8 channels 433/869/915MHz

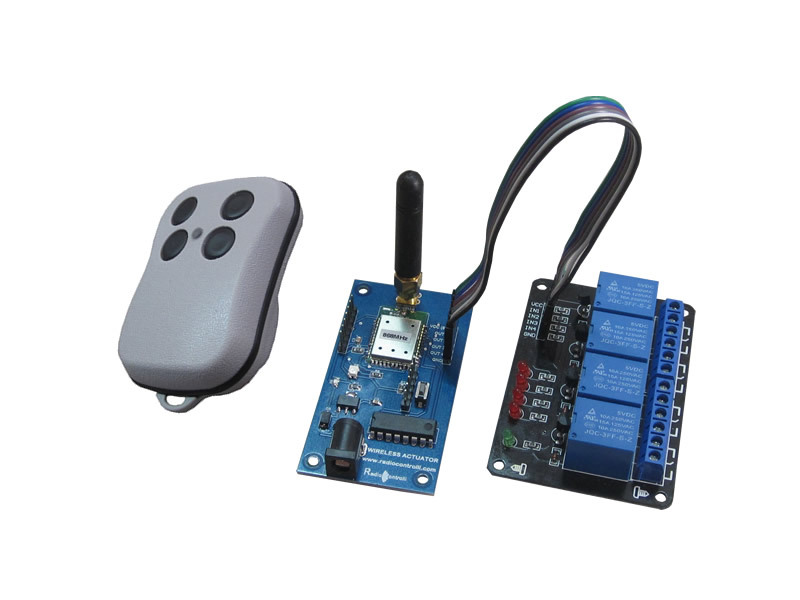

Long range bidirectional system, composed by a bidirectional remote control (TX unit) and a RX unit with the possibility of switching 4/8 relays.

This bidirectional control system has been designed for the various needs of installers and electricians, it can be used to activate all types of lighting, as well as other applications such as water games, electric gates and automatic doors.

The remote control (4/5 keys) has both the ability to transmit and receive (bidirectional), a feature that makes it unique compared to other radio controls, it allows the user to check the status of the relay even remotely (green indicator, relay switched, indicator red relay not switched) and even to switch the single relay.

Each time a relay activation command is sent, there is a visual confirmation as to whether the activation operation was successful or not (return receipt).

 Technical Characteristics :

- Confirmation sent command (return receipt).

- Possibility to interrogate the RX unit and check the status  of the 8   channels.

- GFSK modulation 19.2Kbps - Frequency 433/869/915MHz

- Distance: About 1000 meters in open field.

Part Descriptions

• Model: TBLO-433-4
• Model: TBLO-869-4
• Model: TBLO-915-4
• Model: RC-CC1310-869-TBLO
• Model: RC-CC1310-915-TBLO
• Model: TBLO-869-5

• Datasheet: https://www.radiocontrolli.com/media/1327_6c0baff6636aff2019c413393f7b188161678a7d.pdf/o/TBLO-433-EN.pdf

Bidirectional Remote Control 433MHz/868MHz/915MHz

• Video: https://www.youtube.com/watch?v=c0PmIXaL2qk
