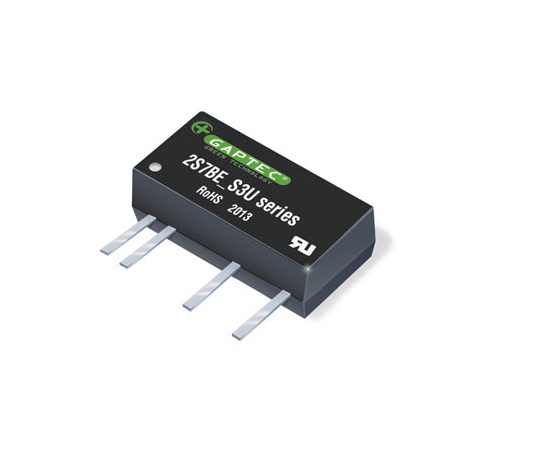

GAPTEC 2S7BE_1215D3U – 2 Watt High Isolation DC-DC Converter

GAPTEC 2S7BE_1215D3U is a 2 Watt isolated and unregulated DC-DC converter designed for compact, high-isolation applications. With fixed input voltage, 3000VDC isolation, and high efficiency up to 86%, it's ideal for IGBT drivers, high-voltage collection circuits, and more.

Part Descriptions

GAPTEC 2S7BE_1215D3U is a high-performance 2 Watt DC-DC converter specifically engineered for applications that demand high isolation, compact size, and reliable power delivery in environments with fixed input voltage. With its single/dual output options and unregulated output design, this module is a cost-effective solution for many low-power industrial and electronic systems.

Built to deliver up to 86% efficiency, the converter is housed in a SIP (Single Inline Package) format, making it ideal for space-constrained designs. One of its key highlights is the 3000VDC reinforced isolation between input and output, which protects sensitive circuits and enhances system safety. This isolation level ensures compliance with safety standards, especially in systems involving IGBT drivers, data acquisition, and high-voltage signal collection.

Key Features of GAPTEC 2S7BE_1215D3U DC-DC Converter

• 2W output power with single/dual output options
• High efficiency up to 86%
• 3000VDC reinforced isolation
• SIP (Single Inline Package) for compact design
• Wide operating temperature: -40°C to +85°C
• Low ripple and noise
• Meets EMI standard EN55032 Class B
• International standard pinout

Applications of GAPTEC 2S7BE_1215D3U DC-DC Converter

• IGBT driver circuits
• High voltage collection circuits
• Industrial electronics
• Electrical isolation systems
• Signal collection and isolation
• Environments with fixed input voltage (≤ ±10% variation)
• Situations where compact size, low leakage current, and high isolation are required
