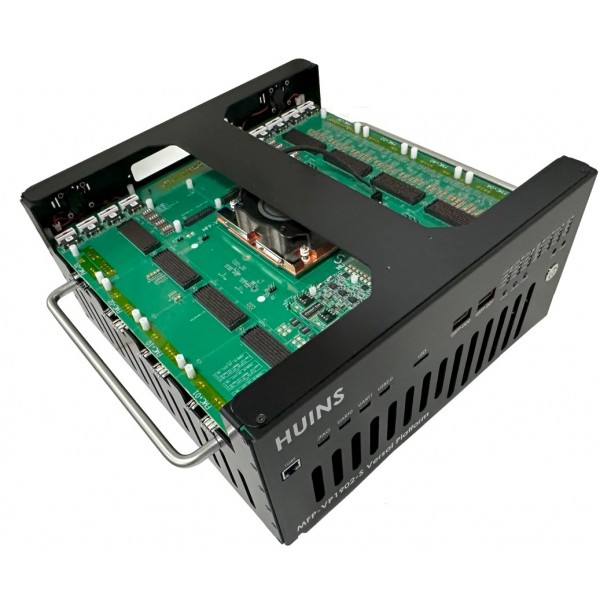

Huins VP1902-S Versal Premium SoC/ASIC Single FPGA Board

Huins VP1902-S is a high-performance FPGA prototyping board featuring the Versal Premium XCVP1902 chip with 18.5 million logic cells, 2.4x I/O bandwidth, and support for PCIe Gen5. Designed for advanced SoC/ASIC design validation, it delivers unmatched capacity, speed, and debugging performance.

Huins VP1902-S Versal Premium SoC/ASIC FPGA Prototyping Board is a next-generation single FPGA solution engineered for ultra-complex SoC and ASIC emulation. Powered by the Xilinx Versal Premium XCVP1902-2MSEVSVA6865 chip, this board offers 18.5 million system logic cells—delivering 2.2x more logic density and 2.4x higher I/O bandwidth than previous generations. With up to 8.5x faster debugging capabilities over the VU19P FPGAs, it is ideal for accelerating development in AI, machine learning, 5G, and high-speed networking.

The board integrates dual ARM Cortex-A72 and Cortex-R5F processors, dual DDR4 SODIMM slots supporting up to 64GB of 3200MHz memory, and multiple high-speed I/O interfaces including FMC+, PCIe Gen5, USB 3.0, Ethernet, HDMI, and DDR4. It also features QSFP-DD, GTYP, and GTM lanes, and supports remote control and configuration via USB for streamlined testing and development workflows.

Engineered to address the increasing complexity of modern chip design, Huins VP1902-S provides unmatched scalability, real-time validation, and robust prototyping capabilities. With its modular expansion, low-skew high-speed clocks, and comprehensive peripheral support, it's an essential tool for semiconductor design engineers aiming to reduce time-to-market.

Features of Huins VP1902-S Versal Premium SoC/ASIC Single FPGA Board

  • XCVP1902-2MSEVSVA6865 XILINX VERSAL FPGA Chip mount
  • 18.5 Million system logic cells, total 2,000 I/O
  • Dual ARM® Cortex®-A72 MPCore™, Dual ARM® Cortex™-R5F
  • DDR4 SODIMM x 2, Max. 3200MHz, 32GB x 2
  • Peripherals: Giga Eth, USB, SD, QSPI, UART
  • FMC+ x 8, QTH x 3, NVAF x 2, QSFP-DD x 2 Extension Connector
  • GTYP 64 Lane(8 Lane 8ea), GTM 32 Lane(8 Lane 4ea)
  • Clock Module (CLK 0~3) Clock Generator 6.25 ~ 400MHz
  • Supports up to 8 individually adjustable Vccos
  • User Daughter Module Support

Applications of Huins VP1902-S Versal Premium SoC/ASIC Single FPGA Board

  • ASIC and SoC Prototyping
  • AI/ML Chip Development
  • 5G Infrastructure Hardware Validation
  • High-Speed Networking Equipment Testing
  • Data Center FPGA Acceleration
  • Advanced Silicon Design Debugging
  • IP Core Integration & Verification
  • FPGA-Based Emulation and Simulation
