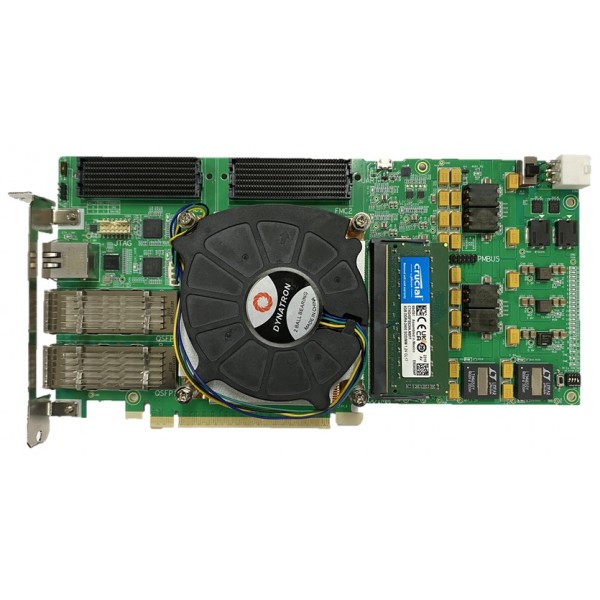

VU19P-PCIe Virtex UltraScale+ FPGA Prototyping System

MFP-VU19P-PCIe® is HUINS’ unique FPGA platform concept product, based on the Virtex™ UltraScale+™ VU19P FPGA. It features FMC expansion I/O connectors, PCIe®, and QSFP+, delivering a versatile and high-performance solution. Backed by HUINS’ industry-recognized FPGA expertise and proven technologies, we aim to provide the most efficient and advanced FPGA board available in Korea.

This board offers extensive programmability and a vast FPGA gate capacity equivalent to 48 million ASIC gates, making it ideal for a wide range of applications. It supports high-speed interfaces such as PCIe® Gen3 x16 / Gen4 x8 lanes, two FMC+ connectors, two QSFP+ ports, onboard 8GB
memory, and expandable SoDIMM-type memory.

The MFP-VU19P-PCIe® utilizes the highest-density FPGA among the Xilinx Virtex UltraScale+ family, enabling complex and scalable user applications. Memory can be expanded upon request, using both SoDIMM modules and the onboard memory configuration. Two FMC+ (VITA 57.4) connectors provide access to general-purpose I/O and up to 36 GTY transceivers (20 + 16), allowing for optional board-to-board expansion. Additionally, two QSFP+ ports enable versatile system-level interconnect and functional expansion between devices.

Part Descriptions

Features of Huins VU19P-PCIe Virtex UltraScale+ FPGA Prototyping System

• High-performance AMD Virtex™ UltraScale+™ VU19P(XCVU19P-2FSVB3824E) FPGA with large LUT capacity
• DDR4 8GB (on-board) / Up to 16GB DDR4 SODIMM with or without ECC
• PCIe® Gen3 x16 / Gen4 x8 lanes
• Dual QSFP+ for board-to-board connectivity and expansion
• 2x FMC HSPC+ connectors for various I/O expansions: 36 GTY + 160 IO
• 10/100/1000BASE-T Ethernet

Applications of Huins VU19P-PCIe Virtex UltraScale+ FPGA Prototyping System

• High-Performance Computing (HPC)
• Data Center and Network Acceleration
• Test and Measurement Equipment
• Telecommunications and 5G Systems
• Aerospace and Defense
• Broadcast and Video Processing
• Industrial and Scientific Research
