Product Features

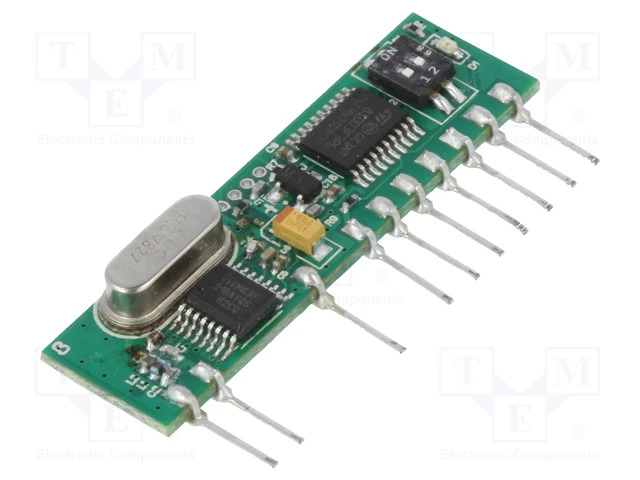

RC-RHCS-4CH is a super heterodyne receiver with integrated decoder (HCS and Learning) and 4 open collector outputs. It allows the immediate realization of your own wireless application. C-RHCS-4CH is an 433.92MHz ASK Radio Receiver Module with PLL synthesizer and crystal oscillator. On the same board is integrated HCS and «Learning Code» decoding and 4 output channels.

Recognizes the following decodings :

- HCS301  HCS decoding (technology of KEELOQ Microchip)

- EV1527 Learning Code

- RT1530 Learning Code

Up to 20 remote controls storable.

The module has open-collector outputs, activies with low logic level. The code of the remote control is memorized through auto learning procedure.

Part Descriptions

• Model: K-TV02 - Receiver Unit 2 channels +  N. 2 remote Control.
• Model: RXK-4CH - Receiver Unit 433.92MHz - 4 channels relay output.
• Model: RXK-2CH - Receiver Unit 433.92MHz - 2 channels relay output.
• Model: RC-RHCS-4CHB - 433.92MHz Receiver board with decoding 4 channels.
• Model: RC-RHCS-2CHB - 433.92MHz Receiver board with decoding 2 channels.
• Model: RCTV-02 - Remote Control 2 Channels Coding HCS300, compatible with the receiver
• Model: RCTV-03 - Remote Control 4 Channels Coding EV1527, compatible with the receiver RC-RHCS-4CH
• Model: RCTV-04 - Remote Control 4 Channels Coding EV1527, compatible with the receiver RC-RHCS-4CH
• Model: RCTV-05 - Remote Control 4 Channels Coding HCS300, compatible with the receiver RC-RHCS-4CH
• Model: RCTV-01  - Remote Control 4 Channels Coding EV1527, compatible with the receiver RC-RHCS-4CH
• Model: RCTV-06 - 4 channels Remote Control Duplicator
