Product Features

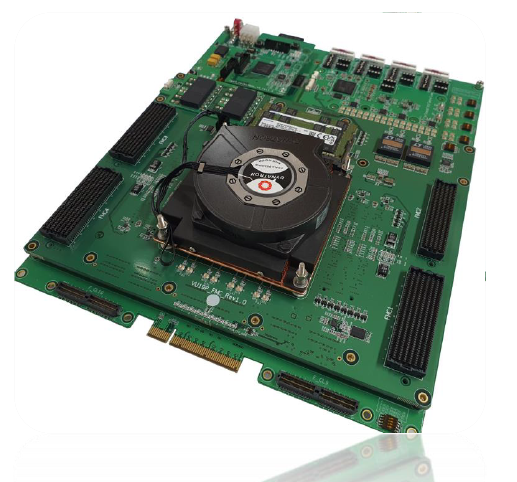

MFP-VU 19P-SF (FMC Type)

Virtex® UltraScale+™ VU 19P Single FPGA SoC a nd ASIC Rapid Prototyping System

• Composed of single Virtex® UltraScale+™ VU19P FPGA modules and Base Board
• FPGA Module (Virtex® UltraScale+™ XCVU19P FSVA3824 Chip mount)
• Supports 48 M ASIC gates, total 1,742 I/O
• FMC+ HSPC, FMC Connector extention
• FMC Connector x 4 HA24, HB 22, LA34, DP : FMC1/3/4(GTY 12Lane) FMC2(GTY4Lane)
• DDR4 So DIMM (supports up to 32GB) * 6CH
• Clock 4 Differential Signals and 4 Single Ended Signals
• Supports up to four individually adjustable voltages
• Select Map configuration, SD card
• Power/Reset/Config control by USB (Remote bit file download & control)

Part Descriptions

MFP VU19P SF is a FMC expansion IO connector based on VU19P UltraScale+™ FPGA and is HUINS unique FPGA platform concept product.

It provides programming for a variety of applications and a wide range of FPGA gates (48 million asic gates). MFP VU19P SF (Xilinx Virtex® UltraScale + ™ 19P FP GA) is modularized so that 1, 2, or 4 or more VU19P FPGAs can be custom designed and connected to customer systems, so scalability is not limited and IO expansion supports FMC+, FMC Connector application provides an easy and diverse function expansion site through FMC Connector.

MFP-VU19P SF supports 6 sockets of 72bit, dual rank, up to 128GB.

It is possible to manufacture and verify desired expansion modules such as PCIe, CSI, DSI, USB3.0, DDR4, Ethernet, HDMI, VX1, etc.
