Product Features

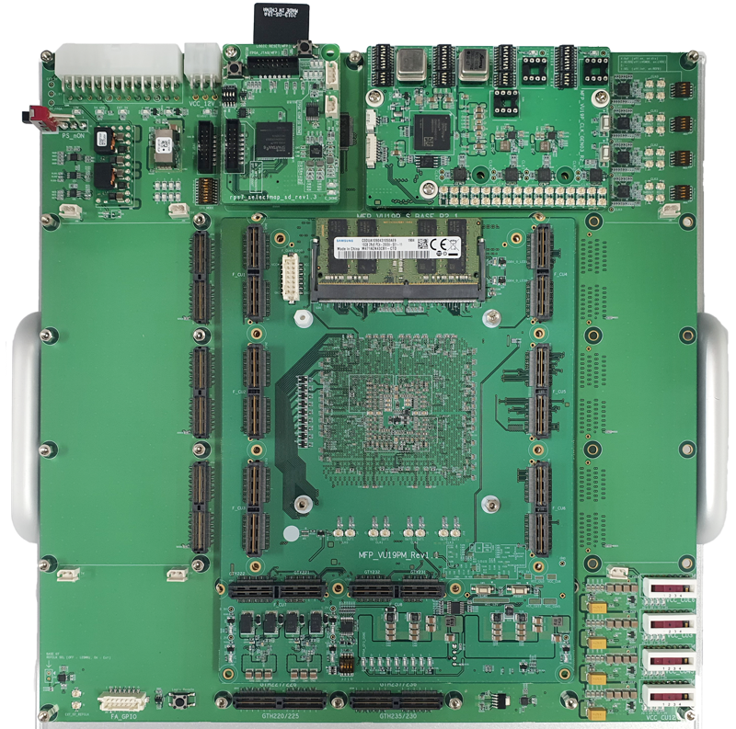

MFP-VU19P-S (Single FPGA)

Virtex® UltraScale+™ VU19P Quad FPGA SoC ASIC Rapid Prototyping System

• Composed of four Virtex® UltraScale+™ VU19P FPGA modules and Base Board
• FPGA Module (Virtex® UltraScale+™ XCVU19P FSVA3824 Chip mount)
• Base board capable of mounting four MFP VU19M modules
• Baseboard 4 119pin extension connectors
• DDR4 So DIMM (supports up to 32GB)
• FPGA JTAG & SelectMap Configuration SD card
• Clock 4 Differential Sig nals and 4 Single Ended Signals, 8ea Clock
• GTY Lane Connector 12ea
• Supports up to 11 individually adjustable Vccos
• Power/Reset/Config control by USB (Remote bit file download & control, option)
• MFP Series Daughter Module Compatible

Part Descriptions

MFP-VU19PM is compatible with Single, Duo, and Quad Base boards.MFP-VU19P-Q is an FPGA platform equipped with four XCVU19P Vertex UltraScale+™ and is Huins' unique FPGA concept product.

We aim to provide boards with the best, most efficient technology using proven FPGA technology and know-how that are recognized as the best. The XCVU19P FPGA has 1.7 times the capacity and up to 30% faster performance than the previous XCVU440.. MFP-VU19P-Q provides programming and a wide range of FPGA gates (48 million asic gates) for various applications. The MFP-VU19PM FPGA is modularized so that one, two, four or more VU19P FPGAs can be custom designed and connected to customer systems, so scalability is not limited.

The MFP-VU19P-M provides easy and versatile expansion sites via samtec High-speed QTH connectors (8 on the top and 10 on the bottom) and supports up to 128GB of 72-bit ECC DDR4 SODIMM sockets.

It is possible to manufacture and verify desired expansion modules such as PCIe, CSI, DSI, USB3.0, DDR4, Ethernet, HDMI, VX1, etc., and remote download and control of Power/Reset/Config control is possible through USB.

SelectMap Config Time 40Sec. (using SD card SelectMap) is provided.

Low skew, high-speed clocks are distributed by the clock buffer. The clock is driven through oscillators on the base board. The base board's eight Clock outputs are connected to the MFP-VU19PM module. Four MFP-VU19PM can use eight clocks on the base board.
