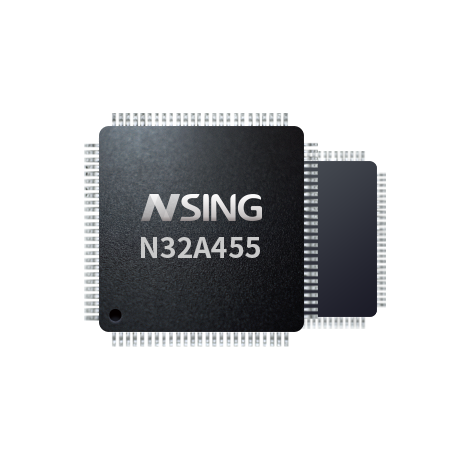

Main Features of N32A455 Series MCU

1. Powerful Core Performance

   • Arm® Cortex®-M4F @144MHz, delivering 180 DMIPS with 8 KB instruction cache and zero-wait execution using a flash acceleration unit.

2. Encrypted Memory with High Reliability

   • Up to 512 KB encrypted eFlash with ECC check, partition management, and 10-year data retention.

   • Up to 144 KB SRAM with hardware parity check.

3. Advanced Analog Interfaces

   • Four 12-bit 4.7 Msps ADCs with up to 38 external channels.

   • Four rail-to-rail operational amplifiers with programmable gain (up to 32x).

   • Seven high-speed comparators with adjustable reference and two 12-bit 1 Msps DACs.

4. Flexible Clock Sources

   • Supports internal RC or external crystal clock input.

5. Comprehensive Reset and GPIO Support

   • Power-on, power-off, undervoltage, external pin, and dual watchdog reset.

   • Up to 80 GPIOs for versatile applications.

6. Rich Communication Interfaces

   • Seven serial ports, including USART (ISO7816, IrDA, LIN) and UART interfaces.

   • SPI (with I2S), QSPI, I2C (master/slave), SDIO, and two CAN 2.0A/B interfaces.

7. High-Precision Timing and Counters

   • Advanced 16-bit timers, general-purpose timers, SysTick, and watchdogs with high control precision.

8. Integrated Real-Time Clock (RTC)

   • Built-in calibratable RTC with leap year support, alarms, and periodic wake-up.

9. Enhanced Security Features

   • Cryptographic acceleration for AES, DES/3DES, SHA, and TRNG.

   • Flash encryption, tamper detection, and secure program download.

10. Automotive-Grade Reliability

    • Wide operating range: 1.8V to 3.6V, -40°C to 125°C.

    • ±4kV ESD (HBM) and AEC-Q100-G2 certified.

Applications of N32A455 Series MCU

• Air-conditioning system, door and window control, automotive lighting, motor control, instrument assistance, radar, etc.
