Product Features

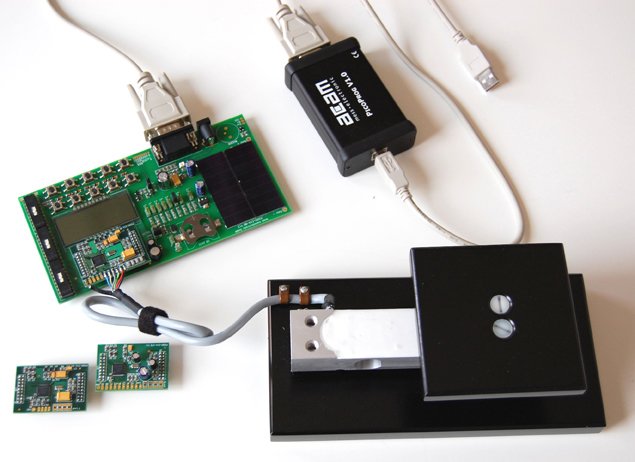

Plug it, test it, and be convinced. That's the aim of the PSØ81/PSØ9 and DLC evaluation kits. Therefore, these are not just PCBs but complete weighing systems with load cell weighing platform and easy to use measurement software. The PSØ81/ PSØ9-EVA-Kits consists of a motherboard with one (PSØ9) or three (PSØ81) plug-in modules. On the motherboard, the user finds the LCD, a solar panel, and the power supply circuit. Digital load cells (DLC) are becoming more and more attractive. With PICOSTRAIN’s ability to do compensation with software production of DLCs can be simplified and automated. The DLC evaluation kit delivers a complete solution to the developer, based on PICOSTRAIN method. The PSØ9-DLC kit has a small PCB integrated directly into the load cell. The electronics is connected to the user's PC with the PICOPROG programmer. The software package includes evaluation software with a convenient graphical user interface and the assembler/debugger.

Part Descriptions

PSØ81-EVA-KIT

• Main board with LCD display, power select, solar panel, battery holder, wall power supply, 10 pushbuttons
• PSØ81-EVA-HR for up to 100,000 stable scale divisions
• PSØ81-EVA-STD for up to 40,000 stable scale divisions

PSØ8-EVA-WB Wheatstone module

• 10 kg load cell (350 Ohm), mounted on platform PSØ9-EVA-KIT
• Main board with LCD display, power select, battery holder, wall power supply, 8 pushbuttons and 4 capacitive buttons

PSØ9-EVA-HR high-resolution module

• 10 kg load cell (350 Ohm), mounted on platform

PSØ9-DLC- KIT

• 10 kg digital load cell, mounted on platform, with 350 Ohm sensors, wired as 2 half bridges with 1 span compensation resistor
• SPI / I2C / UART interfaces
