Product Features

The PICOTURN-CT is a calibration unit that simulates the behavior of a sensor mounted to a turbo charger. It is connected to the PICOTURN-BM controller instead of a sensor and allows the verification and calibration of the analog and digital output signals.

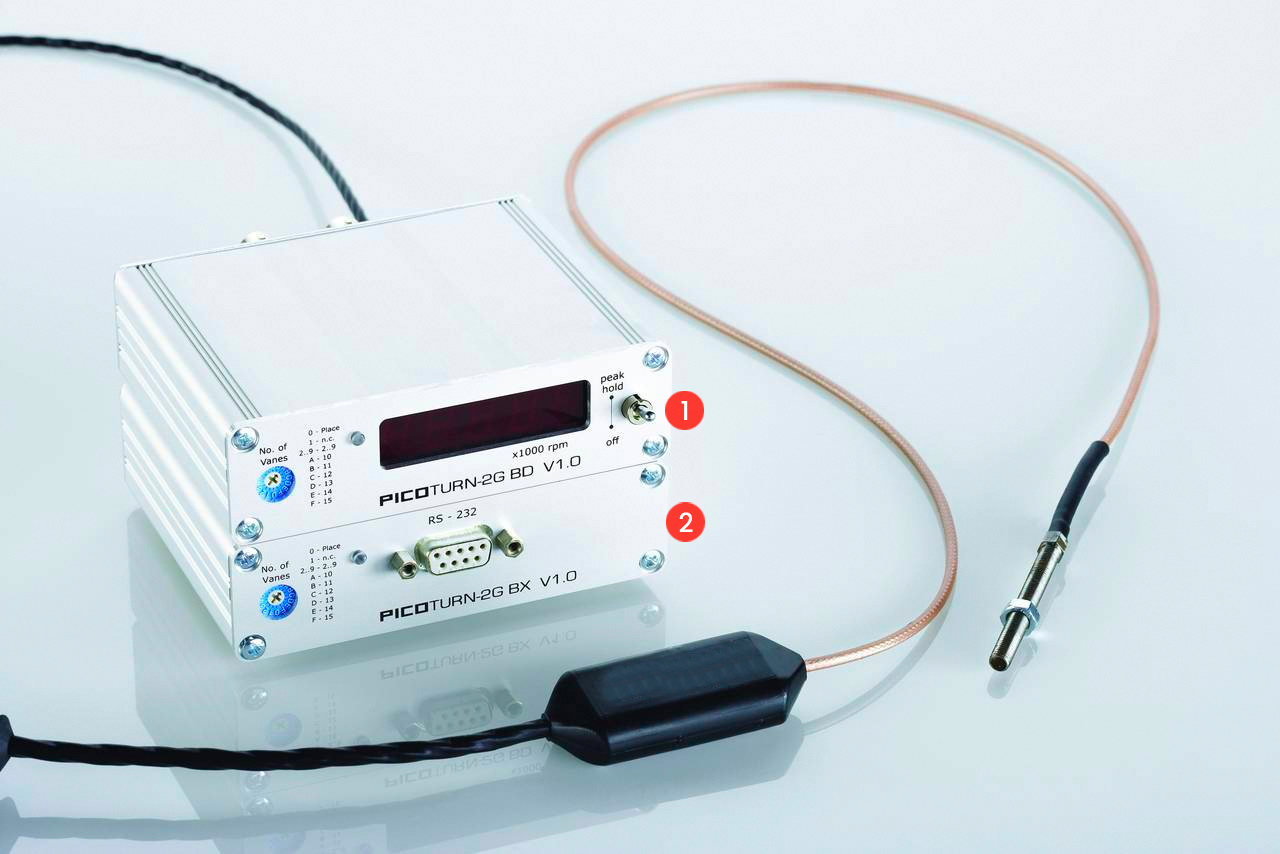

Part Descriptions

Features

• Supply voltage: 9 to 15 V DC
• Case size: 105mm x 30mm x 85mm (W x H x L)
• Output signal: Digital pulsed Signal. simulates revolution speed from 0 to 360,000 rpm in steps of 40,000 rpm
• Operating temperature: -40°C to +85°C
• Number of vanes: Adjustable in the range of 4 to 32 vanes
