Product Features

Ultra Low Power sub 1GHz Multichannels Radio Transceiver with USB interface

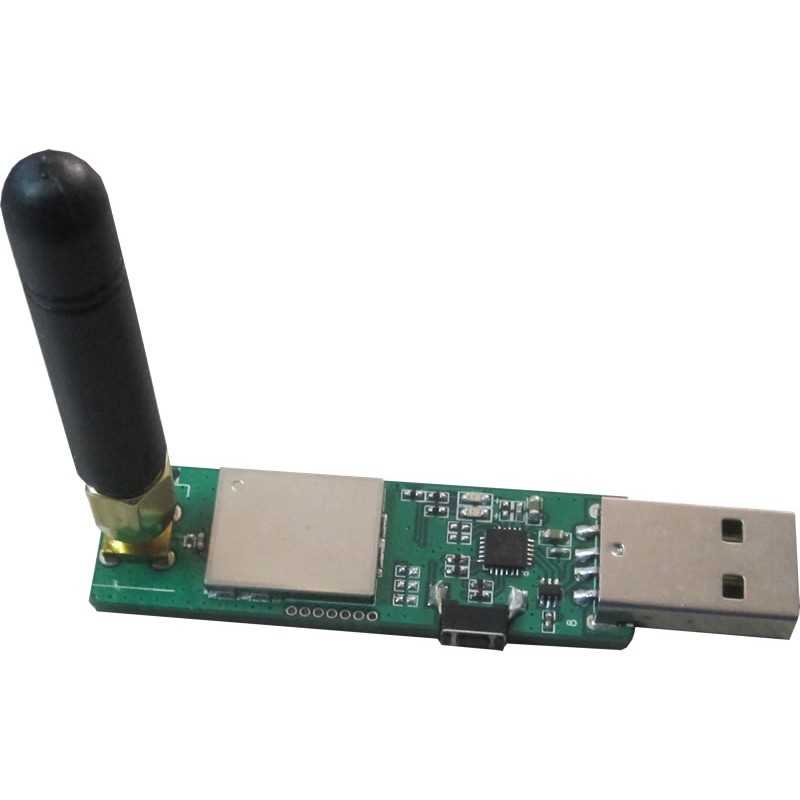

The RC-CC1310-USB-XXX module is based on Texas InstrumentsCC1310F128 component. This device combines a flexible, very low power RF transceiver with a powerful 48 MHz Cortex M3 microcontroller in a platform supporting multiple physical layers and RF standard. In addition the tranceiver is connected to a single chip CP2102 (Silicon Labs), to allow the USB to UART data transfer.

• Long range operations, the sensitivity parameter is -110dBm at data rates of 50 kbps and down to -124dBm when the data rate is 0.625kbps.
• Interference from other wireless communications can be overcome with 90dB of blocking.
• The RF output power levels can reach up to +14dBm.
• All this ensure a robust signaling for long range communications.
• TI-15.4 Stack, IEEE802.15.4e/g Standard Based Star Networking Software Designed for long range & robust star networks

Feature :

- Low-Power Wireless Systems

- Smart Grid and Automatic Meter Reading

- Home and Building Automation

- Wireless Sensor Network

- 6LoWPAN systems

Applications :

- IEEE 802.15.4g mode switch support

- Ultra Low consumption technology

- Powerful ARM Cortex M3

- Supported by the open platform Contiki 6LoWPAN.

- Very Small size

Part Descriptions

• RC-CC1310-USB-868 - (868MHz version)
• RC-CC1310-USB-915 - (915MHz version)
