SIGNALlab 250-12 Standard Kit

SIGNALlab 250-12 is most sophisticated Red Pitaya digitizer, built for more demanding industrial applications and research, where robustness and performance matter more than cost.

The device has full software control over the hardware and additional hardware features compared to other Red Pitaya products. Its larger Xilinx Zynq 7020 FPGA enables greater real-time processing capabilities plus a faster 250Msps sampling rate, and just like other Red Pitaya products it offers the benefits of remote access, with an online app user interface accessible through Ethernet or Wi-Fi.

All SIGNALlab 250-12 digitizers are now PoE (Power Over Ethernet) capable, simplifying powering and communicating by using a single Ethernet cable.  It saves time and costs of installation by reducing the time and expense of having electrical power cabling installed and is also safer due to intelligent POE delivery that is designed to protect network equipment from incorrect installation, overloads or under-powering.

Key features SIGNALlab 250-12 Standard Kit:

– Dual-Core ARM Cortex-A9 MPCore Xilinx 7020 SoC (CPU & FPGA)
– FPGA and CPU integration for enhanced performance
– Very fast sampling speed: 250MSPS, for the two simultaneous inputs
– And the same fast generation speed for the two outputs
– Open-source design for customization and flexibility
– Ethernet connectivity and optional WiFi dongle
– Dedicated external trigger and 10Mhz Clock input ports
– Possibility of integration into own system/product
– PoE (power over Ethernet) capable, out of the box
– Open-source software code available with application examples
– Works with Linux, Windows PC, Android, IOS, basically anything with a web browser
– Free web apps (oscilloscope & signal generator, spectrum, logic analyzer, SDR, VNA, PID)
– Can be controlled remotely using C, LabVIEW, MATLAB, Python, or Scilab
– Can be programmed to meet custom needs

Part Descriptions

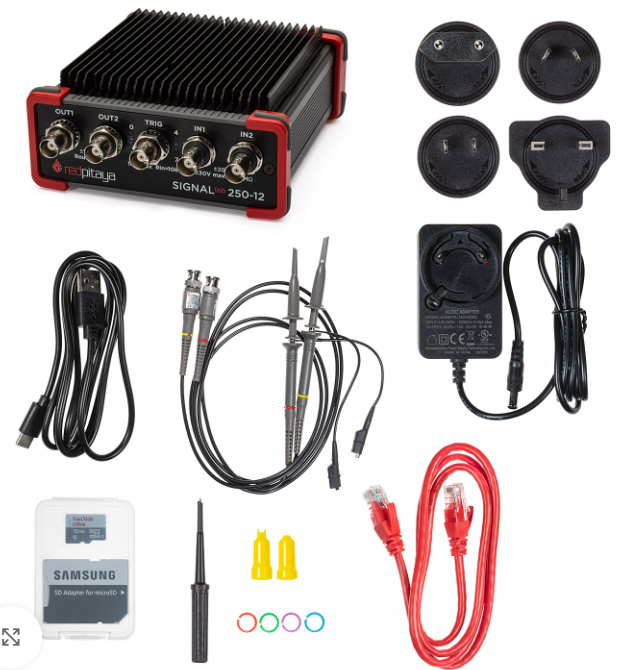

What is in the box SIGNALlab 250-12 Standard Kit:

– Red Pitaya SIGNALlab 250-12 digitizer board in Aluminium Housing
– Oscilloscope probes
– SD card
– Power supply
– USB-A to USB-C and Ethernet cables

Applications SIGNALlab 250-12 Standard Kit

OSCILLOSCOPE AND SIGNAL GENERATOR
SPECTRUM ANALYZER
BODE ANALYZER
LCR METER
CALIBRATION
