Red Pitaya STEMlab 125-14 Diagnostic Kit

Red Pitaya STEMlab 125-14 Diagnostic Kit offers a wide range of functionalities, including an oscilloscope, spectrum analyzer, signal generator, and more. With its high-performance capabilities, you can accurately measure and analyze signals with ease.

Whether you are working on educational projects, research, or professional applications, the Red Pitaya STEMlab 125-14 Diagnostic Kit provides a reliable and efficient solution for your measurement and testing requirements.

Key features of Red Pitaya STEMlab 125-14 Diagnostic Kit:

– Small form factor multi-instrument
– Dual-Core ARM Cortex-A9 MPCore Xilinx ZYNQ 7010 SoC (CPU & FPGA)
– FPGA and CPU integration for enhanced performance
– Fast sampling speed:125MSPS, for the two simultaneous inputs
– And the same fast generation speed for the two outputs
– Open-source design for customization and flexibility
– Ethernet connectivity and included WiFi dongle
– Open-source software code available with application examples
– Works with Linux, Windows PC, Android, IOS, basically anything with a web browser
– Free web apps (oscilloscope & signal generator, spectrum, Bode and logic analyzer, SDR, VNA, PID)
– Can be controlled remotely using C, LabVIEW, MATLAB, Python, or Scilab
– Can be programmed to meet custom needs

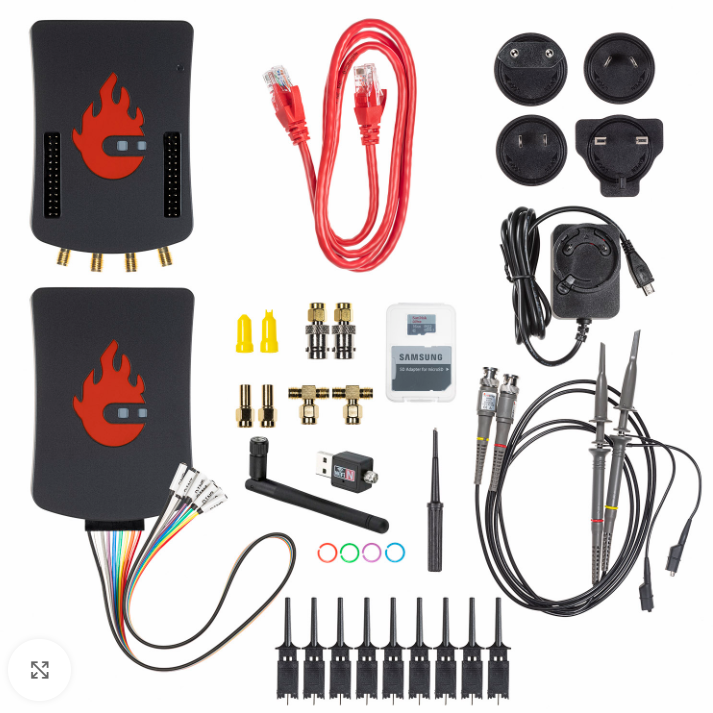

What is in the box

– Red Pitaya STEMlab 125-14 digitizer board
– SD card (16GB, class 10)
– Ethernet cable (1m)
– Power supply (5V, 2A)
– Aluminium case
– Logic analyzer extension module
– 2x oscilloscope probes
– 2x SMA to BNC adapter
– 2x 50 ohm termination
– 2x SMA T adapter
– WiFi dongle


Part Descriptions

Applications of Red Pitaya STEMlab 125-14 Diagnostic Kit:

• OSCILLOSCOPE AND SIGNAL GENERATOR
• SPECTRUM ANALYZER
• BODE ANALYZER
• LOGIC ANALYZER
• LCR METER
• VNA (VECTOR NETWORK ANALYZER)
• SDR (SOFTWARE DEFINED RADIO)
