Product Features

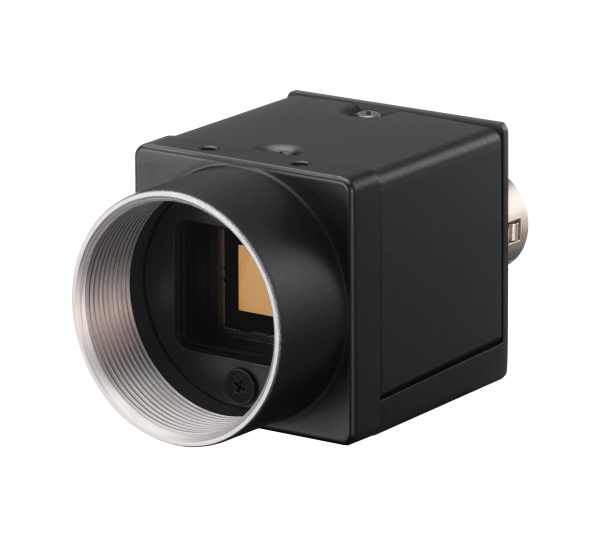

Sony XCG-CG40 GigE Global Shutter CMOS 0.40 MP resolution B/W camera

Sony XCG-CG40 (black & white) combines the best of Sony technology in a convenient form factor which is optimized for use within both the Industrial Vision and non-manufacturing vision markets. The XCG-CG40 draws upon Sony's market leading Global Shutter CMOS sensor technology, combining the 0.04MP sensor with a rich heritage of complete camera technology, bringing the best combination of performance and quality from a brand you can trust. The XCG-CG40 incorporates the latest Pregius GSCMOS sensor providing the best combination of resolution and frame rate tailored for use in fast moving production and inspection environments where GigE Vision is the preferred architecture. The XCG-CG40 provides a simple migration path from CCD to GSCMOS without necessarily having to upgrade or change architecture. The IMX273 shares comparable sensor and pixel size characteristics with the well-regarded Sony ICX445, but offers huge technological improvements in sensitivity, dynamic range, noise reduction and frame rate capability. The XCG-CG has a resolution of 728 (H) x 544 (V) (effective pixels) with a frame rate of 300 fps and supports GigE Vision 1.2 / 2.0 with a one cable PoE capability.

Part Descriptions

Features of Sony XCG-CG40 GigE Global Shutter CMOS 0.40 MP resolution B/W camera

Cubic Size
• Dimensions : 29 (W) x 29 (H) x 42 (D) mm
(Same dimensions as XCG-C series)
*excluding protrusions
Feature-rich
• Area gain
• Defect correction
• Look Up Table (LUT)
• Temperature readout
• 3 x 3 filter

System Optimization
• PoE specification support
• IEEE1588
• Mounting position same as XCG-C Series analogue
